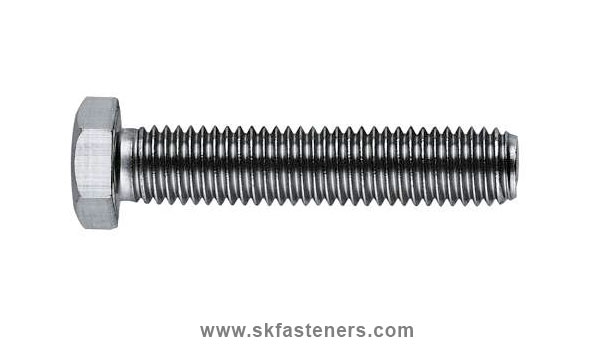

DIN 933 Hex Bolt / ISO 4017 Hex Bolt
HEXAGON BOLTS
DIN 933 / ISO 4017
Steel Grades: 4.6, 8.8, 10.9
Finish: Self, Black, Bright Zinc, Hot Dip Galvanized
Note: All data for information purpose only. For more details on product standards or dimensions or enquiry, please feel free to contact us at info@skfasteners.com

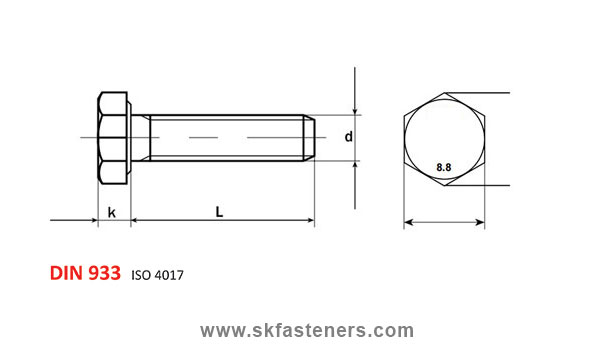

| Dimension(M) | Length (mm) | k (mm) | s (mm) | e (mm) | Weight(kg/1000 pc) |
|---|---|---|---|---|---|
| M5 | 8 | 3.5 | 8 | 8.79 | 2.4 |
| M5 | 10 | 3.5 | 8 | 8.79 | 2.6 |
| M5 | 12 | 3.5 | 8 | 8.79 | 2.9 |
| M5 | 14 | 3.5 | 8 | 8.79 | 3.1 |
| M5 | 16 | 3.5 | 8 | 8.79 | 3.3 |
| M5 | 20 | 3.5 | 8 | 8.79 | 3.8 |
| M5 | 25 | 3.5 | 8 | 8.79 | 4.4 |
| M5 | 30 | 3.5 | 8 | 8.79 | 5.1 |
| M5 | 35 | 3.5 | 8 | 8.79 | 5.7 |
| M5 | 40 | 3.5 | 8 | 8.79 | 6.3 |
| M5 | 45 | 3.5 | 8 | 8.79 | 7 |
| M5 | 50 | 3.5 | 8 | 8.79 | 7.6 |
| M5 | 60 | 3.5 | 8 | 8.79 | 8.8 |
| M6 | 8 | 4 | 10 | 11.05 | 3.7 |
| M6 | 10 | 4 | 10 | 11.05 | 4.1 |
| M6 | 12 | 4 | 10 | 11.05 | 4.4 |
| M6 | 14 | 4 | 10 | 11.05 | 4.8 |
| M6 | 16 | 4 | 10 | 11.05 | 5.1 |
| M6 | 20 | 4 | 10 | 11.05 | 5.8 |
| M6 | 25 | 4 | 10 | 11.05 | 6.7 |
| M6 | 30 | 4 | 10 | 11.05 | 7.5 |
| M6 | 35 | 4 | 10 | 11.05 | 8.4 |
| M6 | 40 | 4 | 10 | 11.05 | 9.2 |
| M6 | 45 | 4 | 10 | 11.05 | 10.1 |
| M6 | 50 | 4 | 10 | 11.05 | 11 |
| M6 | 55 | 4 | 10 | 11.05 | 11.9 |
| M6 | 60 | 4 | 10 | 11.05 | 12.7 |
| M6 | 70 | 4 | 10 | 11.05 | 14.4 |
| M6 | 80 | 4 | 10 | 11.05 | 16.2 |
| M6 | 90 | 4 | 10 | 11.05 | 18 |
| M6 | 100 | 4 | 10 | 11.05 | 19.8 |
| M8 | 10 | 5.3 | 13 | 14.38 | 9.1 |
| M8 | 12 | 5.3 | 13 | 14.38 | 9.8 |
| M8 | 16 | 5.3 | 13 | 14.38 | 11.1 |
| M8 | 20 | 5.3 | 13 | 14.38 | 12.3 |
| M8 | 25 | 5.3 | 13 | 14.38 | 13.9 |
| M8 | 30 | 5.3 | 13 | 14.38 | 15.5 |
| M8 | 35 | 5.3 | 13 | 14.38 | 17.1 |
| M8 | 40 | 5.3 | 13 | 14.38 | 18.7 |
| M8 | 45 | 5.3 | 13 | 14.38 | 20.3 |
| M8 | 50 | 5.3 | 13 | 14.38 | 21.8 |
| M8 | 55 | 5.3 | 13 | 14.38 | 23.4 |
| M8 | 60 | 5.3 | 13 | 14.38 | 25 |
| M8 | 65 | 5.3 | 13 | 14.38 | 26.6 |
| M8 | 70 | 5.3 | 13 | 14.38 | 28.2 |
| M8 | 75 | 5.3 | 13 | 14.38 | 28.98 |
| M8 | 80 | 5.3 | 13 | 14.38 | 31.4 |
| M8 | 90 | 5.3 | 13 | 14.38 | 34.6 |
| M8 | 100 | 5.3 | 13 | 14.38 | 37.7 |
| M8 | 110 | 5.3 | 13 | 14.38 | 40.9 |
| M8 | 120 | 5.3 | 13 | 14.38 | 44.1 |
| M10 | 12 | 6.4 | 17 | 18.9 | 17.2 |
| M10 | 16 | 6.4 | 17 | 18.9 | 19.2 |
| M10 | 20 | 6.4 | 17 | 18.9 | 21.2 |
| M10 | 25 | 6.4 | 17 | 18.9 | 23.7 |
| M10 | 30 | 6.4 | 17 | 18.9 | 26.2 |
| M10 | 35 | 6.4 | 17 | 18.9 | 28.7 |
| M10 | 40 | 6.4 | 17 | 18.9 | 31.2 |
| M10 | 45 | 6.4 | 17 | 18.9 | 33.7 |
| M10 | 50 | 6.4 | 17 | 18.9 | 36.2 |
| M10 | 55 | 6.4 | 17 | 18.9 | 38.7 |
| M10 | 60 | 6.4 | 17 | 18.9 | 41.3 |
| M10 | 65 | 6.4 | 17 | 18.9 | 43.8 |
| M10 | 70 | 6.4 | 17 | 18.9 | 46.3 |
| M10 | 75 | 6.4 | 17 | 18.9 | 48.8 |
| M10 | 80 | 6.4 | 17 | 18.9 | 51.3 |
| M10 | 85 | 6.4 | 17 | 18.9 | 53.8 |
| M10 | 90 | 6.4 | 17 | 18.9 | 56.3 |
| M10 | 100 | 6.4 | 17 | 18.9 | 61.3 |
| M10 | 110 | 6.4 | 17 | 18.9 | 66.4 |
| M10 | 120 | 6.4 | 17 | 18.9 | 71.4 |
| M10 | 130 | 6.4 | 17 | 18.9 | 76.4 |
| M10 | 140 | 6.4 | 17 | 18.9 | 81.4 |
| M12 | 16 | 7.5 | 19 | 21.1 | 27.7 |
| M12 | 20 | 7.5 | 19 | 21.1 | 31 |
| M12 | 25 | 7.5 | 19 | 21.1 | 34 |
| M12 | 30 | 7.5 | 19 | 21.1 | 37.7 |
| M12 | 35 | 7.5 | 19 | 21.1 | 41.3 |
| M12 | 40 | 7.5 | 19 | 21.1 | 44.9 |
| M12 | 45 | 7.5 | 19 | 21.1 | 48.5 |
| M12 | 50 | 7.5 | 19 | 21.1 | 52 |
| M12 | 55 | 7.5 | 19 | 21.1 | 55.6 |
| M12 | 60 | 7.5 | 19 | 21.1 | 58.2 |
| M12 | 65 | 7.5 | 19 | 21.1 | 62.8 |
| M12 | 70 | 7.5 | 19 | 21.1 | 66.4 |
| M12 | 80 | 7.5 | 19 | 21.1 | 73.6 |
| M12 | 90 | 7.5 | 19 | 21.1 | 80.8 |
| M12 | 100 | 7.5 | 19 | 21.1 | 88 |
| M12 | 110 | 7.5 | 19 | 21.1 | 95.2 |
| M12 | 120 | 7.5 | 19 | 21.1 | 102 |
| M12 | 130 | 7.5 | 19 | 21.1 | 109 |
| M12 | 140 | 7.5 | 19 | 21.1 | 116 |
| M12 | 150 | 7.5 | 19 | 21.1 | 123 |
| M12 | 160 | 7.5 | 19 | 21.1 | 130 |
| M14 | 25 | 8.8 | 22 | 23.91 | 53 |
| M14 | 30 | 8.8 | 22 | 23.91 | 57.9 |
| M14 | 35 | 8.8 | 22 | 23.91 | 62.9 |
| M14 | 40 | 8.8 | 22 | 23.91 | 67.9 |
| M14 | 50 | 8.8 | 22 | 23.91 | 77.9 |
| M14 | 60 | 8.8 | 22 | 23.91 | 87.8 |
| M14 | 70 | 8.8 | 22 | 23.91 | 97.9 |
| M14 | 80 | 8.8 | 22 | 23.91 | 107 |
| M14 | 90 | 8.8 | 22 | 23.91 | 117 |
| M14 | 100 | 8.8 | 22 | 23.91 | 127 |
| M16 | 20 | 10 | 24 | 26.17 | 63 |
| M16 | 25 | 10 | 24 | 26.17 | 70.2 |
| M16 | 30 | 10 | 24 | 26.17 | 76.9 |
| M16 | 35 | 10 | 24 | 26.17 | 83.5 |
| M16 | 40 | 10 | 24 | 26.17 | 90.2 |
| M16 | 45 | 10 | 24 | 26.17 | 97.1 |
| M16 | 50 | 10 | 24 | 26.17 | 103 |
| M16 | 55 | 10 | 24 | 26.17 | 110 |
| M16 | 60 | 10 | 24 | 26.17 | 117 |
| M16 | 65 | 10 | 24 | 26.17 | 123 |
| M16 | 70 | 10 | 24 | 26.17 | 130 |
| M16 | 75 | 10 | 24 | 26.17 | 137 |
| M16 | 80 | 10 | 24 | 26.17 | 144 |
| M16 | 85 | 10 | 24 | 26.17 | 150 |
| M16 | 90 | 10 | 24 | 26.17 | 157 |
| M16 | 100 | 10 | 24 | 26.17 | 170 |
| M16 | 110 | 10 | 24 | 26.17 | 184 |
| M16 | 120 | 10 | 24 | 26.17 | 197 |
| M16 | 130 | 10 | 24 | 26.17 | 210 |
| M16 | 140 | 10 | 24 | 26.17 | 224 |
| M16 | 150 | 10 | 24 | 26.17 | 237 |
| M16 | 160 | 10 | 24 | 26.17 | 250 |
| M18 | 40 | 11.5 | 27 | 29.56 | 120 |
| M18 | 50 | 11.5 | 27 | 29.56 | 136 |
| M18 | 60 | 11.5 | 27 | 29.56 | 153 |
| M18 | 70 | 11.5 | 27 | 29.56 | 169 |
| M18 | 80 | 11.5 | 27 | 29.56 | 180 |
| M20 | 30 | 12.5 | 30 | 32.95 | 134 |
| M20 | 35 | 12.5 | 30 | 32.95 | 145 |
| M20 | 40 | 12.5 | 30 | 32.95 | 155 |
| M20 | 45 | 12.5 | 30 | 32.95 | 165 |
| M20 | 50 | 12.5 | 30 | 32.95 | 176 |
| M20 | 55 | 12.5 | 30 | 32.95 | 186 |
| M20 | 60 | 12.5 | 30 | 32.95 | 196 |
| M20 | 65 | 12.5 | 30 | 32.95 | 207 |
| M20 | 70 | 12.5 | 30 | 32.95 | 217 |
| M20 | 75 | 12.5 | 30 | 32.95 | 227 |
| M20 | 80 | 12.5 | 30 | 32.95 | 238 |
| M20 | 85 | 12.5 | 30 | 32.95 | 247 |
| M20 | 90 | 12.5 | 30 | 32.95 | 258 |
| M20 | 100 | 12.5 | 30 | 32.95 | 279 |
| M20 | 110 | 12.5 | 30 | 32.95 | 300 |
| M20 | 120 | 12.5 | 30 | 32.95 | 320 |
| M20 | 130 | 12.5 | 30 | 32.95 | 340 |
| M20 | 140 | 12.5 | 30 | 32.95 | 361 |
| M20 | 150 | 12.5 | 30 | 32.95 | 381 |
| M20 | 160 | 12.5 | 30 | 32.95 | 402 |
| M24 | 40 | 15 | 36 | 39.55 | 244 |
| M24 | 45 | 15 | 36 | 39.55 | 259 |
| M24 | 50 | 15 | 36 | 39.55 | 274 |
| M24 | 55 | 15 | 36 | 39.55 | 289 |
| M24 | 60 | 15 | 36 | 39.55 | 304 |
| M24 | 65 | 15 | 36 | 39.55 | 319 |
| M24 | 70 | 15 | 36 | 39.55 | 334 |
| M24 | 75 | 15 | 36 | 39.55 | 348 |
| M24 | 80 | 15 | 36 | 39.55 | 363 |
| M24 | 90 | 15 | 36 | 39.55 | 393 |
| M24 | 100 | 15 | 36 | 39.55 | 423 |
| M24 | 110 | 15 | 36 | 39.55 | 453 |
| M24 | 120 | 15 | 36 | 39.55 | 483 |
